Essential Tools for CAN Bus Development (Including J1939, NMEA 2000, and CANopen)

Developing applications and hardware for CAN Bus (Controller Area Network) can range from hobbyist projects to professional-grade industrial systems. Regardless of whether you are working with protocols such as SAE J1939 (heavy-duty vehicles), NMEA 2000 (marine electronics), or CANopen (industrial automation), there are some universal tools and practices you’ll need.

In essence, there are two main development scenarios:

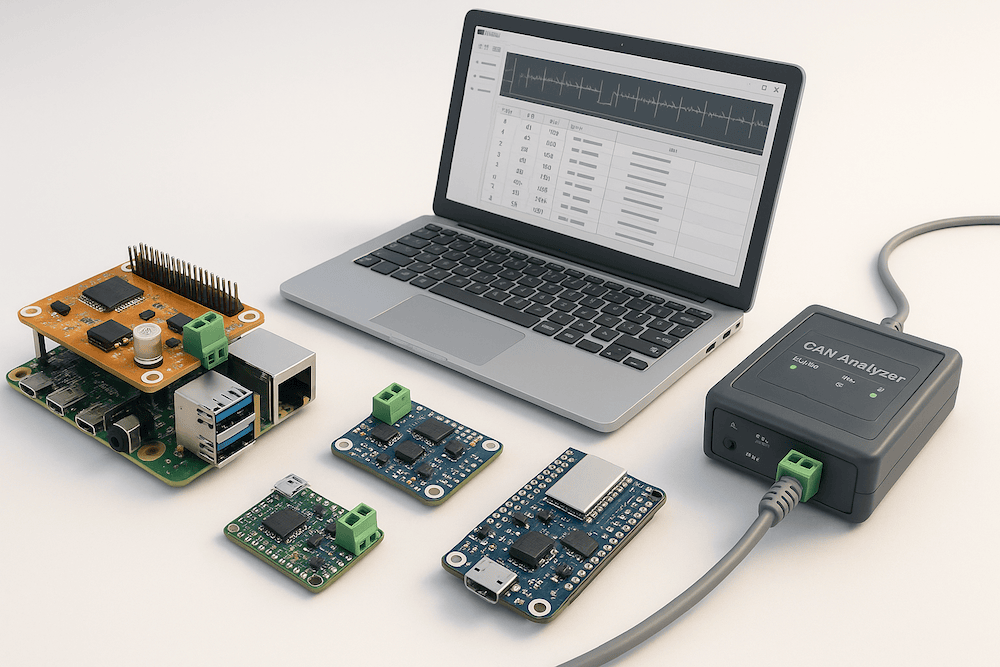

1. Off-the-Shelf Hardware

Many developers choose ready-made hardware such as PiCAN boards for Raspberry Pi, Teensy-based CAN Bus modules, or ESP32 CAN Bus systems. These solutions are cost-effective, easy to set up, and come with excellent community support.

  • Raspberry Pi with PiCAN: Running Linux, the Pi provides built-in compilers for C/C++ and Python. This makes it an attractive option for developers who want to combine CAN Bus with broader networking or IoT projects.

  • Teensy and ESP32 boards: Typically programmed with the Arduino IDE, which is widely popular for its simplicity and large ecosystem of libraries. Alternatives like MicroPython or the ESP-IDF (for ESP32) are also available, though they come with steeper learning curves.

2. Custom CAN Bus Hardware

When developing your own CAN Bus hardware, you must ensure you are working within a known-good network environment. This means combining your new hardware with trusted, off-the-shelf CAN interfaces to verify proper communication. If issues arise, you can be confident that the problem lies in your new design rather than in the overall network.


The Role of CAN Analyzers

Regardless of which scenario you choose, one essential tool you cannot do without is a CAN Analyzer.

A CAN Analyzer is typically a combination of:

  • Hardware gateway – an interface that connects your CAN Bus network to a computer, often via USB, Ethernet, or Wi-Fi.

  • Software application – usually Windows-based (though Linux support exists), which allows you to monitor, record, and simulate CAN traffic.

This tool is indispensable for debugging and development. With it, you can:

  • Monitor live traffic on the CAN network.

  • Log data for later analysis.

  • Simulate nodes to test specific scenarios.

  • Verify protocol compliance for standards like J1939, NMEA 2000, or CANopen.

Without a CAN Analyzer, diagnosing problems in a new setup becomes guesswork.

While a standard CAN analyzer is sufficient for monitoring and simulating raw CAN data frames, higher-layer protocols (HLP) such as SAE J1939, NMEA 2000, and CANopen often require analyzers with protocol-specific decoding and simulation features. These advanced analyzers can interpret parameter group numbers (PGNs), object dictionaries, or marine-specific messages directly, which saves considerable development time. However, such specialized software tools are typically very expensive, making them less accessible to smaller development teams or hobbyists. Developers can still work with raw frame data, but it can be more cumbersome when dealing with structured HLP traffic. A notable exception is the JCOM.J1939 series of gateways, used in combination with the JCOM1939 Windows software, which provides powerful J1939 analysis and simulation capabilities at an affordable price point. This makes it an attractive option for anyone working on J1939-based projects without the budget for high-end commercial analyzers.


Software Development Environments

The choice of development environment depends largely on your hardware platform:

  • Linux (Raspberry Pi / PiCAN): Built-in support for SocketCAN, compilers, and Python libraries make this a flexible option.

  • Arduino IDE (Teensy, ESP32): Easiest entry point, with extensive community examples and tutorials.

  • Advanced options: Developers can use PlatformIO, ESP-IDF, or MicroPython for more specialized setups.

Each environment has its strengths. Arduino IDE is quick to learn, while Linux-based environments allow deeper integration with networking and automation.


Best Practice for Custom Development

If you are building new CAN hardware, here’s a recommended workflow:

  1. Set up a stable CAN network using off-the-shelf hardware.

  2. Use a CAN Analyzer to establish baseline traffic and verify proper communication.

  3. Introduce your custom hardware into the network.

  4. If problems occur, the analyzer and reference hardware allow you to quickly isolate the issue.

This approach saves countless hours of troubleshooting and ensures that your new hardware is tested against a known-good system.


Final Thoughts

Whether you are experimenting with CAN Bus on a Raspberry Pi, programming an ESP32-based device, or designing your own CAN interface from scratch, the combination of a reliable development environment and a CAN Analyzer forms the backbone of successful development.

By starting with proven hardware and software tools, you give yourself a solid foundation—one that applies across automotive (J1939), marine (NMEA 2000), and industrial (CANopen) applications.
